Foam MachineHome >> Products >> Foam Machine

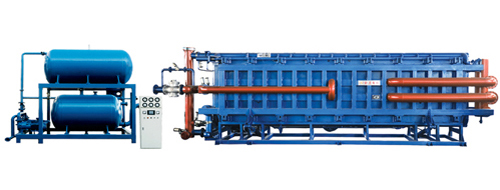

Full Automatic Vacuum Panel Machine

Product Introduction
• The machine is welded by high-quality profile steel with age heating treatment which can bring a high strength, non-deformation and high resistance to the expansive force from high-density products.
• The machine is controlled by PLC full computer touch screen displayer which can realize a full automatic cycle operation of mould opening, mould closing, material feeding, heating, heat preserving, vacuum cooling, demoulding and extruding-out of finished products.
• The surface of the mould is made of special aluminum alloy panel which can realize a high efficiency of heat conduction, favorable tensile strength and long service life.
• The machine is integrated with a high-efficiency vacuum pump cooling device with a strong penetrability, favorable adhesivity, low consumption of steam, high speed of shaping and low water content so as to ensure the uniformity of inside and outside of the thickened foam plastic panel, which highly increased production efficiency.

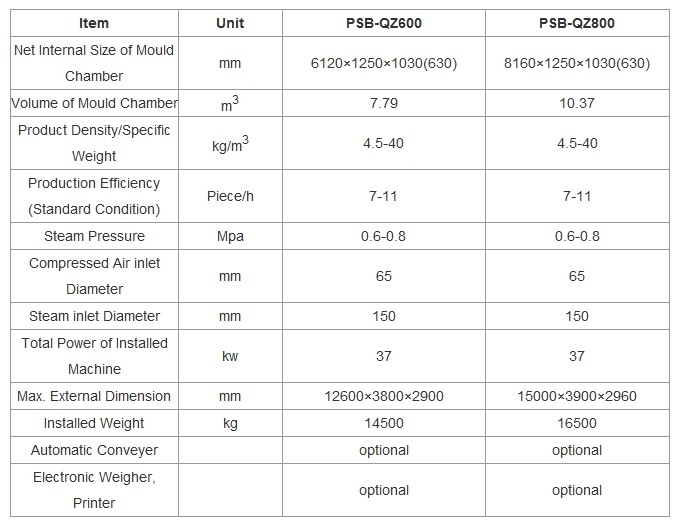

Technical Parameter
