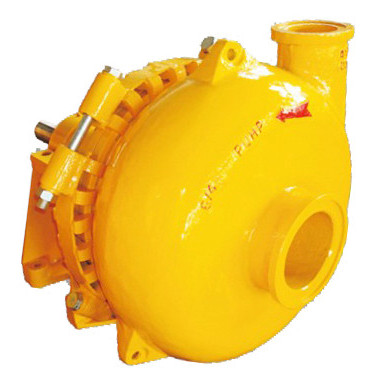

TS-4D Sand Pump

Product name	TS-4D sand pump
Type	TS
pump size	6/4
Capacity	36-252m3/h
Head	3.5-51m
Allowable Max. Power	60kw
Speed	600-1400r/min
NPSH	2.5-3.5m

Model Explanation

TS-4D sand pump

T: Our company

S: Sand

4: Discharge size (inch)

D: Frame type with maximum power

Introduction of sand Pump——TS Series

TS series sand pumps are horizontal and single-casing centrifugal pumps. The type TS sand pumps are of high –head ones. This sand pumps is designed specifically for continuous pumping of extremely aggressive slurries, with a wide particle size distribution. Capable of handling large particles at consistently high efficiencies results in low cost of ownership. The large volume internal profile of the casing reduces associated velocities further increasing component life.

The features of this kind of sand pump

Construction of this sand pump is of single casing connected by means of clamp bands and wide wet–passage. The wet–parts are made of Ni–hard and high-chrome wear–resistant alloys. The discharge direction of sand pump can be oriented in any direction of 360°. This type of pump owns the advantages of easy installation, good performance of NPSH and wear-resistance.

Main application of this kind of sand pump

Sand pumps are designed for continuously handling the most difficult higher abrasive slurries, which contain too big solids, to be pumped by common pumps. They are suitable for delivering slurries in mining, explosive –sludge in metal melting, dredging in dredger and course of rivers, and other fields.

TS(G) Series Slurry Pump Performance Chart

Type	Allowable Max.	CLEAR WATER PERFORMAACE
		Q Capacity		Head H(m)	Speed N(r/min)	Efficiency η%	NPSH (m)	Inlet Dia. (mm)	Outlet Dia. (mm)	Max.Dia. of Partice (mm)
		（m³/h）	(l/s)	Head H(m)	Speed N(r/min)	Efficiency η%	NPSH (m)	Inlet Dia. (mm)	Outlet Dia. (mm)	Max.Dia. of Partice (mm)
TS-4D	60	36~252	10 ~70	3.5-51	600~1400	30 ~50	2.5~3.5	100	150	82

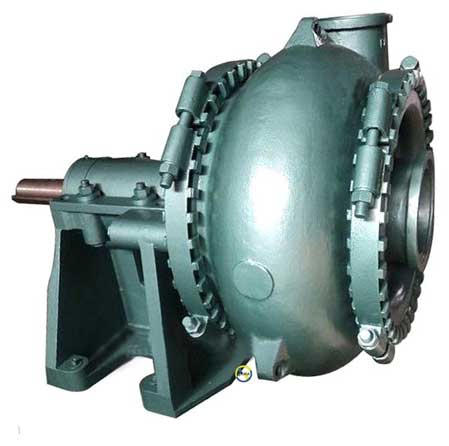

TS-6E	120	137~576	38 ~160	10~48	800~1400	50~60	3~4.5	150	200	127
TS-8S	560	216~980	60 ~272	13~50	500~1000	45~65	3~7.5	200	250	178
TS-8F	560	216~980	60 ~272	13~50	500~1000	45~65	3~7.5	200	250	178
TS-10F	560	360~1512	100~420	11~58	400~850	50~70	2~4.5	250	300	220
TS-10G	600	360~1512	100~420	11~58	400~850	50~70	2~4.5	250	300	220

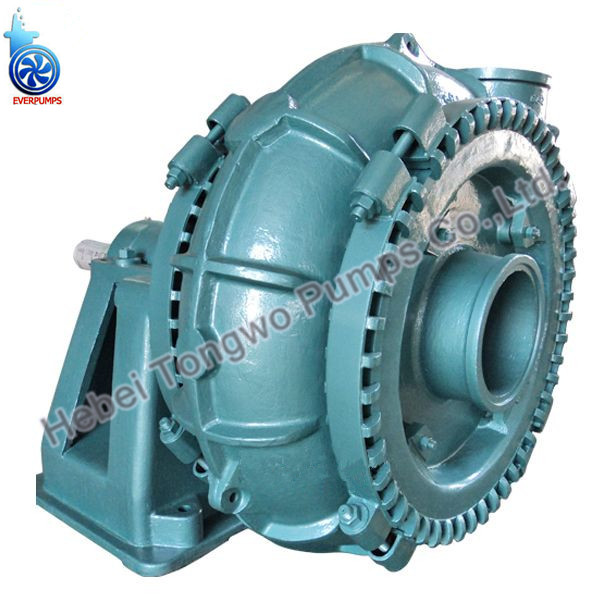

TS-12G	600	504~3168	140 ~880	6~66	300~700	60~68	2~8	300	350	241
TS-14G	600	720~3600	200 ~1000	18~44	300~500	60~68	3~9	350	400	245
TS-16G	1200	860~3816	240~1060	9~48	250~500	60~72	3~6	400	450	254
TS-16T	1200	860~3816	240~1060	9~48	250~500	60~72	3~6	400	450	254
TS-16TU	1200	860~3816	240~1060	9~48	250~500	60~72	3~6	400	450	254
TSG-8S	560	396~1296	110~360	18~80	500~950	60~72	2~5	200	250	178
TSG-10G	600	612~2232	170 ~620	28~78	350~700	60~72	2~8	250	300	220
TSG-10T	1200	612~2232	170 ~620	28~78	350~700	60~70	2~8	250	300	220
TSG-14TU	1200	720~3600	200~1000	12~48	250~500	60~70	3~6	350	400	245

Note:

1. Quantity range recommended: 50%Q’≤Q≤110%Q' (Q' Appropriate to capacity at

highest efficiency point).

2. NPSH: appropriate to point Q recommended at highest speed.
