THR Slurry PumpHome >> THR Slurry Pump



Product name

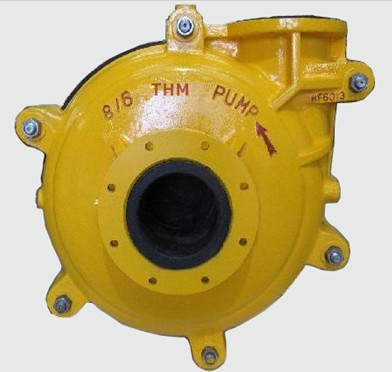

THR-6R rubber lined slurry pump

Type

THR

pump size

8/6

Capacity

324-720m3/h

Head

7-49m

Allowable Max. Power

300kw

Speed

400-1000r/min

NPSH

5-10m



General Description:

Transport the abrasive corrosive slurry with high concentration, rubber lined.



Model Explanation

THR-6R

T: our company

H: High concentration

R: Rubber lined

6: Discharge size (inch)

R: Frame type with maximum power



Introduction

The frame plate liners for THR series pumps have replaceable wear-resistant rubber liners. The impellers are made of natural rubber liners. It has nearly the same constructure with THM.



Application

The type of THR pumps are also using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. It is suitable for the corrosive slurry usually. In some ore dressing, some bigger THR series pump also would be used to transport the fine ore or tailings with weak abrasion.



THR Series Slurry Pump Performance Chart





Pump Model

Allowable Max. Power(kw)

Clear Water Performance

　

capacity Q

Head H(m)

speed n(r/min)

Max.eff. η%

NPSH  (m)

Impeller Dia(mm)

m3/h

l/s

THR-1B

15

10.8-25.2

3-7

7-52

1400-3400

35

　

　

THR-1.5B

15

25.2-54

7-15

5.5-41

1000-2600

50

2.5-5.5

178

THR-2C

30

36-75.4

10-21

13-39

1300-2100

　

2-4

213

THR-3C

30

79.2-180

22-50

5-34.5

800-1800

59

3-5

245

THR-3D

60

THR-4D

60

144-324

40-90

12-45

800-1350

65

3-5

365

THR-4E

120

THR-6E

120

324-720

90-200

7-49

400-1000

65

5-10

510

THR-6R

300

THR-8ST

560

540-1188

150-330

12-50

400-750

75

4-12

　

THR-10ST

560

720-1620

200-450

7-45

300-650

80

2.5-7.5

　

THR-12ST

560

1152-2520

320-700

13-14

300-500

79

3-8

　

THR-12TU

1200

1368-3060

380-850

11-63

250-550

79

4-10

1067



Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).

2.NPSH:appropriate to point Q recommended at highest speed.
