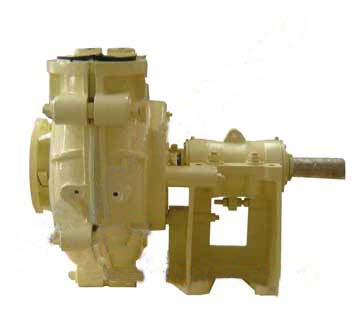

General Description:
Transport the abrasive corrosive slurry with high concentration, rubber lined.
Model Explanation
THR-6E
T: our company
H: High concentration
R: Rubber lined
6: Discharge size (inch)
D: Frame type with maximum power
Introduction
The frame plate liners for THR series pumps have replaceable wear-resistant rubber liners. The impellers are made of natural rubber liners. It has nearly the same constructure with THM.
Application
The type of THR pumps are also using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. It is suitable for the corrosive slurry usually. In some ore dressing, some bigger THR series pump also would be used to transport the fine ore or tailings with weak abrasion.
THR Series Slurry Pump Performance Chart
|
Pump Model |
Allowable Max. Power(kw) |
Clear Water Performance |
|
|||||
|
capacity Q |
Head H(m) |
speed n(r/min) |
Max.eff. η% |
NPSH (m) |
Impeller Dia(mm) |
|||
|
m3/h |
l/s |
|||||||
|
THR-1B |
15 |
10.8-25.2 |
3-7 |
7-52 |
1400-3400 |
35 |
|
|
|
THR-1.5B |
15 |
25.2-54 |
7-15 |
5.5-41 |
1000-2600 |
50 |
2.5-5.5 |
178 |
|
THR-2C |
30 |
36-75.4 |
10-21 |
13-39 |
1300-2100 |
|
2-4 |
213 |
|
THR-3C |
30 |
79.2-180 |
22-50 |
5-34.5 |
800-1800 |
59 |
3-5 |
245 |
|
THR-3D |
60 |
|||||||
|
THR-4D |
60 |
144-324 |
40-90 |
12-45 |
800-1350 |
65 |
3-5 |
365 |
|
THR-4E |
120 |
|||||||
|
THR-6E |
120 |
324-720 |
90-200 |
7-49 |
400-1000 |
65 |
5-10 |
510 |
|
THR-6R |
300 |
|||||||
|
THR-8ST |
560 |
540-1188 |
150-330 |
12-50 |
400-750 |
75 |
4-12 |
|
|
THR-10ST |
560 |
720-1620 |
200-450 |
7-45 |
300-650 |
80 |
2.5-7.5 |
|
|
THR-12ST |
560 |
1152-2520 |
320-700 |
13-14 |
300-500 |
79 |
3-8 |
|
|
THR-12TU |
1200 |
1368-3060 |
380-850 |
11-63 |
250-550 |
79 |
4-10 |
1067 |
Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).
2.NPSH:appropriate to point Q recommended at highest speed.
