Desulphurization pumpHome >> Products >> Desulphurization pump

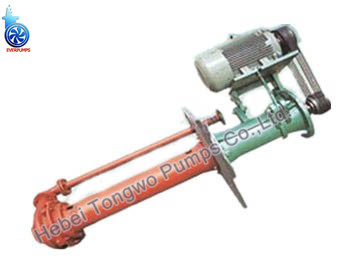

Vertical Desulfurization Pump



Product name

80TLL-45

Type

TLL

pump size

80/45

Capacity

59-286 m3/h

Head

12.5-81.6 m

Allowable Max. Power

110kw

Speed

700-1490 r/min

NPSH

m
Model Explaination:
80TLL-45(B)
80:Outlet Diameter (mm)
TL: Desulfurization Pump
L:Vertical(submersible)
45: Impeller Diameter(cm)
B: 4 Impellers ,A:5 pieces, B:4 pieces,C: 3 pieces, F:6 Pieces, F:6 pieces,G:7pieces, H:8 pieces

Detailed Product Description:

a. Vertical single-stage centrifugal pump
b. Flow-passage parts: High chrome alloy lined or elastomer rubber lined
c. High efficiency
d. Easy maintenance
e. ISO9001
f. OEM Service

Application:
a. Vertical desulfurization pump is widely used for coal-fired power plant.
b. Widely used for tried aluminum plant.
c. Widely used for refinery.
d. Widely used for transiting limestone or plaster slurry for desulphurization   systems in aluminum industry  and petrol industry.
e. Widely used for handling slurry with smoke in absorption tower of electric power station.

TLL Desulphurization Pump Parameters：



     Model
Allowable Power(KW)
Capacity
Q(m3/h)
Head
H(m)
Speedn
(r/m)
Efficiency
η(％)
Max Dia of Particle
(mm)
Weight
(kg)
 150TLL-35
 30
  99-364
 3.0-17.9
490-980
69
15
800
 100TLL-34
 45
  74-293
 5.5-36.8
 700-1480
65.8
14
630
80TLL-45
110
  59-286
12.5-81.6
 700-1490
58.4
15
680
80TLL-36
 45
  50-201
 7.3-45.5
 700-1480
58.2
12
650
65TLL-30
18.5
18-98
 5.9-34.7
 700-1470
53.7
8
440
 50TLL-40B
 30
15-65
 8.6-58.3
34.1
9
540
50TLL-35
 22
19-86
 7.3-47.1
48.1
15
500
50TLL-20
 4
8-38
 1.4-10.7
 700-1440
38.6
10
240
40TLL-35
18.5
9.4-47.6
 8.1-48.0
 700-1470
38.7
7
500
 40TLL-25B
5.5
4.9-22.9
 3.9-21.5
 700-1440
37.6
8
225
 40TLL-A21
 4
4.6-25.9
 3.3-17.0
44.6
10
210
25TLL-15
5.5
4.3-19.3
 3.9-30.8
1390-2900
29.8
8
176

Related Products:

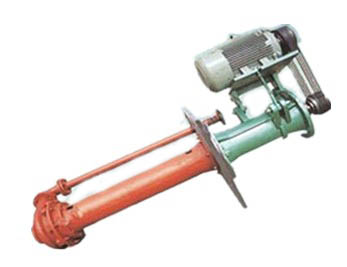

Vertical
