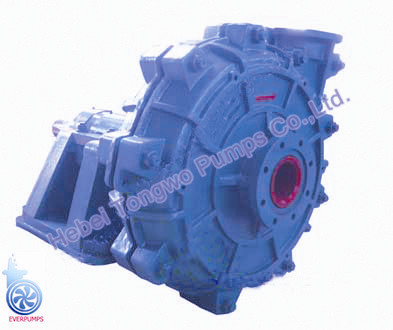

Product name TGM-6S slurry pump Type TGM pump size 8/6 Capacity 468-1008m3/h Head 20-94m Allowable Max. Power 560kw Speed 600-1000r/min NPSH 500-1000 m

---

Introduction：

Model Explanation

TGM-6S

T: Our company logo

G: High head

M: Metal lined

6: Discharge size (inch)

S: Frame type with maximum power



Introduction of Centrifugal Slurry Pump —— TGM Series



TGM Series slurry pumps are cantilevered, horizontal slurry pumps, centrifugal slurry pumps. They are designed for the handling of highly abrasive, high-density slurries. This series pump may also be installed in multistage series



The features of this kind of Centrifugal slurry pump



The frame plate liner and impeller for TGM Series Centrifugal slurry pump are made of wear-resistant metal. The shaft seals could adopt the Packing seal, Expeller Seal or Mechanical seal. The discharge branch can be oriented to any of the eight positions to suit installations and applications.



Application:

They are designed for the handling of highly abrasive, high density slurries in the metallurgical, mining, coal, power generation, construction material and other industry. The pumps of this type may also be installed in multistage series.



TGM Series Slurry Pump Performance Chart



Pump Model	Allowable Max. Power(kw)	Clear Water Performance
		capacity Q		Head H(m)	speed n(r/min)	Max.eff. η%	NPSH  (m)	Impeller Dia(mm)
		m3/h	l/s
TGM-1C	30	16.2-34.2	4.5-9.5	25-92	1400-2200	20	2-5.5	330

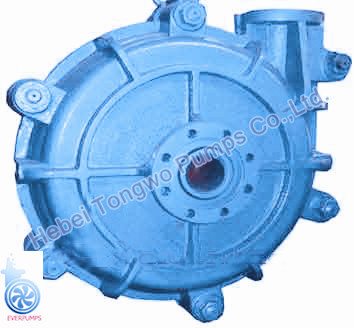

TGM-2D	60	68.4-137	19-38	25-87	850-1400	47	3-7.5	457

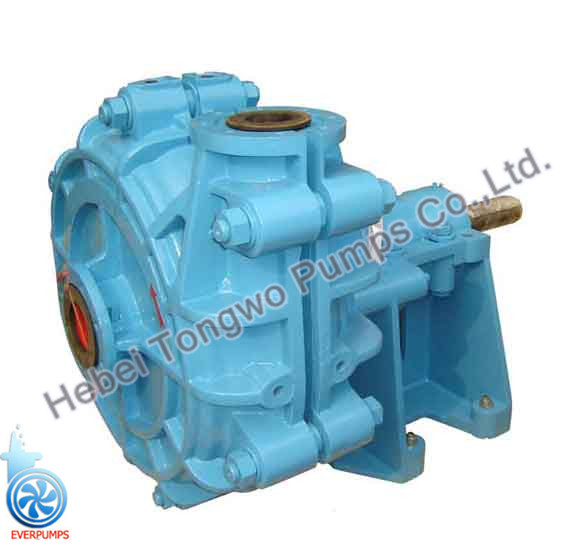

TGM-3E	120	126-252	35-70	12-97	600-1400	50	2-5	508
TGM-4F	260	324-720	90-200	30-118	600-1000	64	3-8	711
TGM-6S	560	468-1008	130-280	20-94	500-1000	65	4-12	711



Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).

2.NPSH:appropriate to point Q recommended at highest speed.



---
