Foam(Froth) pumpHome >> Products >> Foam(Froth) pump

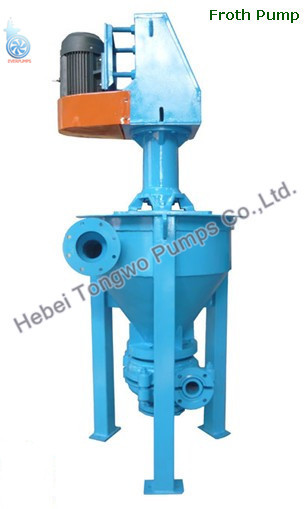

TVF-2Q Foam pump, Forth pump

Product name	TVF-2Q foam pump/froth pump
Type	TVF
pump size	3/2
Capacity	7.2-33 m3/h
Head	5-30m
Allowable Max. Power	15kw
Speed	800-1800r/min
NPSH	m

Model Explanation

TVF-2Q foam pump/froth pump

T: Our company

V: Vertical slurry pump

F: Foam pump/Froth Pump

2: Discharge size (inch)

Q: Frame type with maximum power

Introduction of foam pump/froth Pump---TVF Series

Series TVF foam pump/froth pumps are the latest generation of foam pump/froth pump based on the advanced technology at home and abroad. It could eliminate the foam/froth in the slurry in running and work normally even if the feeding slurry is not enough.TVF pump is the ideal products to deliver the frothy slurry, especially in the flotation technique process.

Features of Foam/Froth Pumps

1.On the bearing house, there is the motor base or motor support, which helps adopt belt drive or direct drive. It is very convenient to change the pulleys to adjust the speed and meet the changes of the work conditions.

2.The box is made of steel, stainless steel or rubber lined steel. It has the feeding suction and overflow box in the tangent line. The overflow box could deliver the surplus slurry back to the pool. The feeding suction in the tangent line could transport the slurry fast and eliminate part of the froth.

3. Series TVF pumps are of double-casing. The materials of the wet parts could be metal alloy, rubber or other non-metal material according to the slurry properties.

Application of Foam/froth pumps:

It is used widely in the metallurgy, minerals, coal washery, chemical and other industrial departments, suitable for handing the abrasive and corrosive slurry with the froth.

Parameters table:

Type	Maximum Power P(Kw)	Clean water Performance				Impeller
Type	Maximum Power P(Kw)	Flow ratem³/h	Head h(m)	Speed n(r/min)	Efficiency η%	Diameter Dia(mm)
TVF-2Q	15	7.2-33	5-30	800-1800	45%	229
TVF-3Q	20	10-104	10-28	700-1500	55%	268
TVF-4R	40	15-130	6-28	500-1050	55%	397
TVF-6S	75	55-330	6-25	350-680	55%	560
