Introduction：
Model Explanation:
TLM(R)-75C
T: Our company
L: Low concentration
M: Metal lined
R: Rubber lined
75: Discharge size (mm)
C: Frame type with maximum power

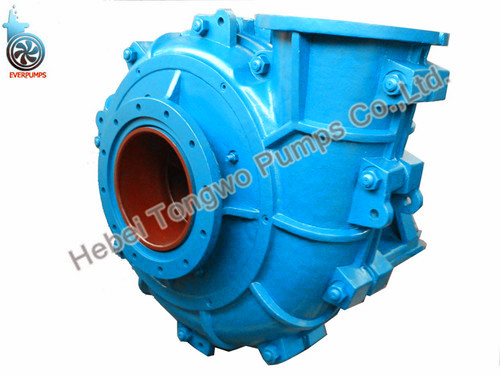

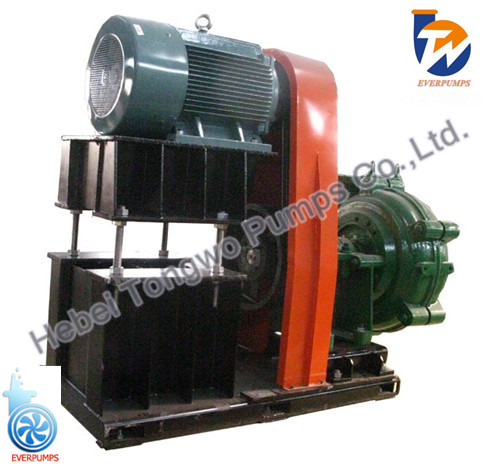

Introduction of Centrifugal Slurry Pump --TLM Series
The TLM(R) series Centrifugal slurry pumps are cantilevered slurry pumps, horizontal, centrifugal slurry pumps. They are suitable for delivering less abrasive, low dense slurry. The TLM(R) series centrifugal slurry pumps have a high rate of revolution and small volume saving floor area.
The features of this kind of Centrifugal slurry pump
The frame plates of TLM Series Centrifugal slurry pump have changeable, wear-resistant metal liners or rubber liners upon request and the impellers are made of wear-resistant metal or rubber. And the discharge branch can be oriented to any of the eight different positions for installation and application upon request. The shaft seals could adopt the Packing seal, Expeller Seal or Mechanical seal.
Application:
They are suitable for delivering low abrasive, low-density slurries for metallurgical, mining, coal and build material departments. The shaft seal is adopted both gland seal and centrifugal seal.
TLM(R) Series Slurry Pump Performance Chart
|
Pump Model
|
Allowable Max. Power(kw)
|
Clear Water Performance
|
|
|||||
|
capacity Q
|
Head H(m)
|
speed n(r/min)
|
Max.eff. η%
|
NPSH (m)
|
Impeller Dia(mm)
|
|||
|
m3/h
|
l/s
|
|||||||
|
TLM-20A
|
7.5
|
1.8-9
|
0.5-2.5
|
7-35.5
|
1400-3000
|
40
|
2.5-3
|
152
|
|
TLM-50B
|
15
|
11.5-65
|
3.2-18
|
8.5-46
|
1400-2800
|
62
|
2.5-5.5
|
190
|
|
TLR-50B
|
15
|
9-61
|
2.5-17
|
3-32.4
|
1200-2600
|
48
|
2.75-4.5
|
190
|
|
TLM-75C
|
30
|
21.6-137
|
6-38
|
7-46.4
|
900-2400
|
57
|
3.0-6
|
229
|
|
TLR-75C
|
30
|
28.8-155
|
8-43
|
9-43
|
1100-2300
|
60
|
3.0-5
|
229
|
|
TLM-100D
|
60
|
46.8-324
|
13-90
|
7-48.3
|
800-1800
|
64
|
2.5-6
|
305
|
|
TLR-100D
|
60
|
54-288
|
15-80
|
12-38
|
800-1600
|
65
|
2.5-5.5
|
305
|
|
TLM-150E
|
120
|
126-569
|
35-158
|
11-52
|
800-1500
|
60
|
2.5-6
|
381
|
|
TLR-150E
|
120
|
72-576
|
20-160
|
4-38
|
800-1300
|
65
|
2.5-5.5
|
381
|
|
TLM-200E
|
120
|
72-1080
|
20-300
|
8-45
|
500-1100
|
74
|
3.0-6
|
457
|
|
TLM-250E
|
120
|
144-1800
|
40-500
|
6-48
|
500-1000
|
73
|
3.0-10
|
550
|
|
TLM-300S
|
560
|
568-2538
|
130-705
|
8-60
|
400-950
|
79
|
2.0-10
|
653
|
|
TLR-300S
|
560
|
432-1900
|
120-528
|
7-41
|
400-800
|
81
|
3.0-8
|
653
|
|
TLM-350S
|
560
|
650-2800
|
180-780
|
10-59
|
400-840
|
81
|
3.0-10
|
736
|
|
TLR-350S
|
560
|
720-2844
|
200-920
|
10-41
|
400-700
|
86
|
3.0-7
|
736
|
|
TLM-400S
|
560
|
756-3312
|
210-920
|
7-37.5
|
300-600
|
85
|
2.0-8
|
825
|
|
TLR-400S
|
560
|
720-3312
|
200-920
|
7-51
|
300-700
|
80
|
2.0-10
|
825
|
|
TLM-450ST
|
560
|
1080-4356
|
300-1210
|
9-40
|
300-550
|
87
|
3.0-10
|
933
|
|
TLR-450ST
|
560
|
1008-4356
|
280-1210
|
9-48
|
300-600
|
80
|
2.0-9
|
933
|
|
TLM-550TU
|
1200
|
1980-7920
|
560-2200
|
10-50
|
250-475
|
86
|
4.0-10
|
1213
|
