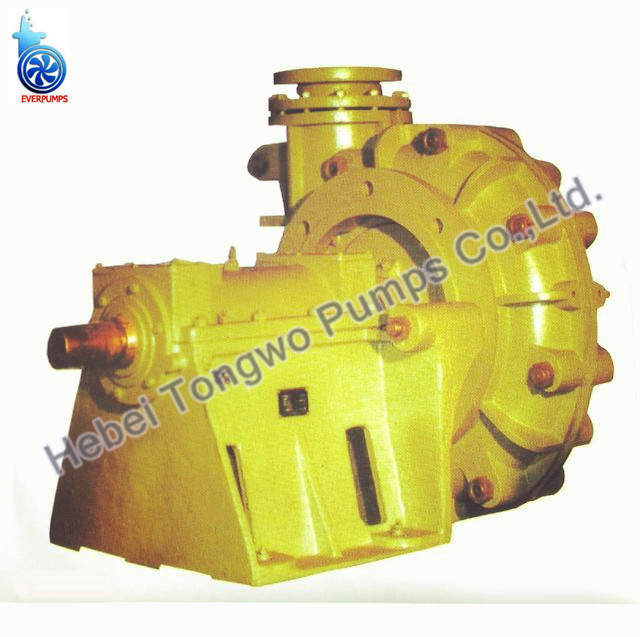

Product name TZG-65 slurry pump Type TZG pump size 65 Capacity 37.8-114.1m3/h Head 25.4-61m Allowable Max. Power 28.8kw Speed 1480r/min NPSH 4.5-3.0m

---

General description:

delivering the slurry with high concentration with the high head.



Model Explanation

TZG(S)65

T: our company

Z: Slurry

G: High head

S: Run in series

65: Discharge size (mm)



Introduction:

In order to meet the requirements on the development of mining, the power plant, metallurgy and coal industries, our works has designed and developed Series TZG(S) Generation Slurry Pump with large capacity, high head, multi-stages with experience of slurry pump design and manufacture for many years, and absorbing the research results of advanced technology from home and abroad.



Application

It can be widely used for handling the mixture of abrasive and corrosive solids in

power, metallurgy, coal, building materials, chemical industry departments, especially

for removing ash and sludge in power plant.



TZG(S) Series Slurry Pump Performance Chart

Pump Model	Allowable Max. Power(kw)	Clear Water Performance
		capacity Q	Head H(m)	speed n(r/min)	Max.eff. η%	NPSH  (m)	Impeller Dia(mm)
		m3/h
TZG(S)65	28.8-19.9	31.7-15.8	58-61	1480	62.5-47.4	4.5-3.0	390
	8.37-5.8	21.0-10.5	25.4-26.7	980	62.5-47.4	2.0-1.3
TZG(S)80	73.7-52.2	56.7-28.3	87.5-91.6	980	66.1-48.7	5.2-2.7	485
	21.4-15.2	37.5-18.8	38.4-40.2	740	66.1-48.7	2.3-1.2
	56.8-40.4	52.0-26.0	73.7-77.1	980	66.1-48.7	4.4-2.3	445
	16.5-11.7	34.4-17.2	32.3-33.8	740	66.1-48.7	1.9-1.0
	41.3-29.2	46.8-23.3	59.5-62.3	980	66.1-48.7	3.5-1.8	400
	12.0-8.4	31.0-15.4	26.1-27.3	740	66.1-48.7	1.5-0.8

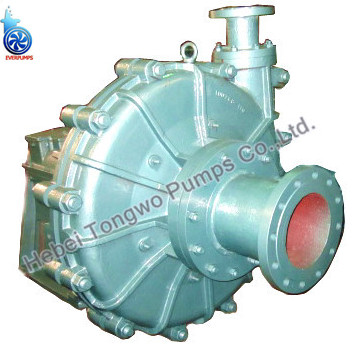

TZG(S)100	124.9-91.4	116.7-58.3	85.1-91.8	1480	77.9-57.4	6.0-2.6	500
	36.3-26.6	77.3-38.6	37.3-40.3	980	77.9-57.4	2.7-1.2
	91.0-66.7	105-52.5	68.9-78.4	1480	77.9-57.4	4.9-2.1	450
	26.4-19.4	69.5-34.8	30.2-32.6	980	77.9-57.4	2.1-1.1
	64.0-46.9	93.4-46.7	54.5-58.8	1480	77.9-57.4	3.8-1.7	400
	18.6-13.6	61.8-30.9	23.9-25.8	980	77.9-57.4	1.7-0.8

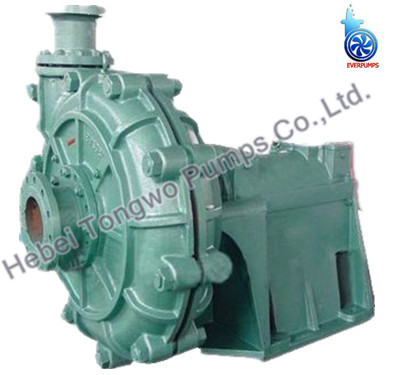

TZG(S)150	215.0-165.5	200-100	85.2-90.0	980	77.7-53.3	3.8-2.7	740
	92.7-71.3	151.2-75.6	48.6-51.3	740	77.7-53.3	2.2-1.5
	168.0-129.3	182.4-91.2	73.0-77.1	980	77.7-53.3	3.3-2.3	685
	74.2-56.8	140.0-70.2	41.6-44.0	740	77.7-53.3	1.9-1.3
	131.9-101.5	169.2-84.6	61.8-65.2	980	77.7-53.3	2.8-1.1	630
	57.6-44.3	129.6-64.8	35.2-37.2	740	77.7-53.3	1.6-0.6
TZG(S)200	342.9-219.1	300.0-150.0	89.0-94.2	980	76.3-63.2	6.7-2.7	740
	147.5-97.3	226.5-113.3	50.7-53.7	740	76.3-63.2	3.8-1.5
	290.2-185.8	283.8-141.9	79.6-84.3	980	76.3-63.2	6.0-2.4	700
	125.0-80.0	214.3-107.1	45.4-48.1	740	76.3-63.2	3.4-1.4
	222.0-141.8	259.5-129.7	66.6-70.5	980	76.3-63.2	5.0-2.0	640
	95.6-61.0	195.9-97.9	38.0-40.2	740	76.3-63.2	2.9-1.1
TZG(S)250	421.2-275.6	400.0-200.0	84.0-90.1	980	78.2-63.2	7.3-3.3	740
	181.4-118.7	302.0-151.0	47.9-51.4	740	78.2-63.2	4.2-1.9
	356.7-233.2	378.4-189.2	75.2- 80.6	980	78.2-63.2	7.1-3.0	700
	153.7-100.5	285.7-142.9	42.9-46.0	740	78.2-63.2	4.0-1.7
	278.8-137.9	348.6-131.6	63.8-68.5	980	78.2-63.2	5.5-2.5	645
	120.1-59.4	263.2-99.4	36.4-39.1	740	78.2-63.2	3.1-1.4
TZG(S)300	542.8-357.6	533.3-266.7	84.3-93.4	980	81.2-68.3	6.9-3.5	760
	233.9-154.0	402.7-201.3	48.1-53.3	740	81.2-68.3	3.9-2.0
	429.4-282.9	493.3-246.7	72.1-79.9	980	81.2-68.3	5.9-3.0	703
	184.8-116.4	372.5-177.9	41.1-45.6	740	81.2-68.3	3.4-1.7
	333.3-219.7	453.3-226.7	60.9-67.5	980	81.2-68.3	5.0-2.5	646

Note: Quantity range recommended:50%Q’≤Q≤100%Q’(Q’Appropriate to capacity at highest efficiency point).

2.NPSH:appropriate to point Q recommended at highest speed.



---
