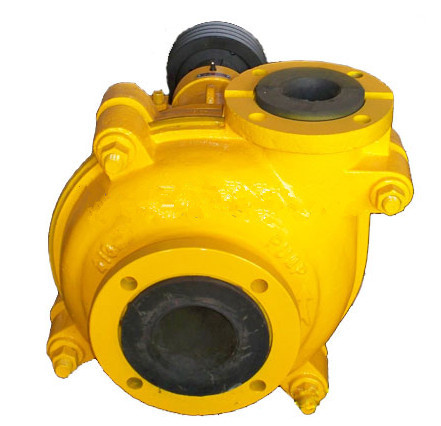

This series slurry pump are cantilevered and horizontal centrifgal slurry pumps. They are designed for the handlind highly abrasive, high concentration slurries. The slurry pump of this model also can be installed as multi-stage series pumps.
The slurry pump body has wearable metal liner or rubber liner punps. The impellers are made of wearable high chrome alloy metal or rubber.
Applications:
This series slurry pump are widely used in metallurgy industry, mining industry, coal, power and other industrial departments.
|
Pump Model
|
Allowable Max. Power(kw)
|
Clear Water Performance
|
|
|||||
|
capacity Q
|
Head H(m)
|
speed n(r/min)
|
Max.eff. η%
|
NPSH (m)
|
Impeller Dia(mm)
|
|||
|
m3/h
|
l/s
|
|||||||
|
THR-1B
|
15
|
10.8-25.2
|
3-7
|
7-52
|
1400-3400
|
35
|
|
|
|
THR-1.5B
|
15
|
25.2-54
|
7-15
|
5.5-41
|
1000-2600
|
50
|
2.5-5.5
|
178
|
|
THR-2C
|
30
|
36-75.4
|
10-21
|
13-39
|
1300-2100
|
|
2-4
|
213
|
|
THR-3C
|
30
|
79.2-180
|
22-50
|
5-34.5
|
800-1800
|
59
|
3-5
|
245
|
|
THR-3D
|
60
|
|||||||
|
THR-4D
|
60
|
144-324
|
40-90
|
12-45
|
800-1350
|
65
|
3-5
|
365
|
|
THR-4E
|
120
|
|||||||
|
THR-6E
|
120
|
324-720
|
90-200
|
7-49
|
400-1000
|
65
|
5-10
|
510
|
|
THR-6R
|
300
|
|||||||
|
THR-8ST
|
560
|
540-1188
|
150-330
|
12-50
|
400-750
|
75
|
4-12
|
|
|
THR-10ST
|
560
|
720-1620
|
200-450
|
7-45
|
300-650
|
80
|
2.5-7.5
|
|
|
THR-12ST
|
560
|
1152-2520
|
320-700
|
13-14
|
300-500
|
79
|
3-8
|
|
|
THR-12TU
|
1200
|
1368-3060
|
380-850
|
11-63
|
250-550
|
79
|
4-10
|
1067
|
