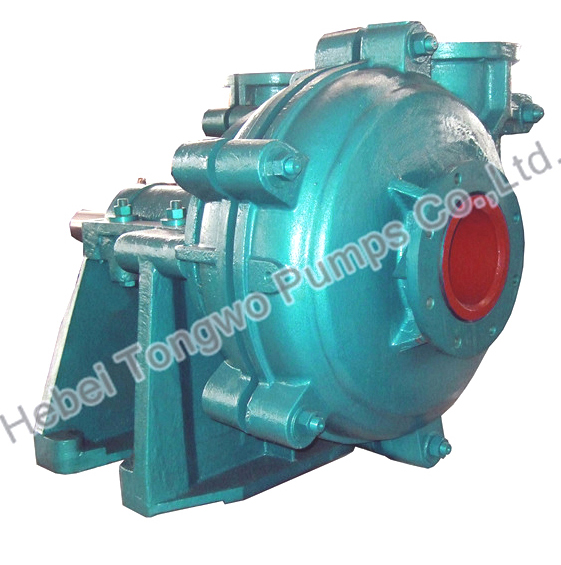

Product name THM-6F slurry pump Type THM pump size 8/6 Capacity 360-828 m3/h Head 10-61 m Allowable Max. Power 120kw Speed 500-1140r/min NPSH 2-9 m

---



Introduction：

Model Explanation and Performance Chart:



THM-6F

T:Our company

H: High Concentration

M: Metal lined

6: Discharge size (inch)

F: Frame type with maximum power



Introduction of Slurry Pump ---- THM Series



THM Series slurry pump is mainly used for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.



The features of this kind of slurry pump



The frame plates of this kind of slurry pump have replaceable wear-resistant metal liners. The impellers are made of wear-resistant metal. The frame plate liner and impeller for THM pump are adoptable of hard metal only.

Bearing assembly of this kind of slurry pump use cylindrical structure, adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.

The shaft seal of this kind of slurry pump could use the packing seal, expeller seal and mechanical seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications.

Here are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

Wide performance, good NPSH and high efficiency are main character of these kinds of slurry pump. The pump of this type may be installed in multistage series to meet the delivery for long distance.





Main application of this kind of slurry pump



This kind of slurry pump mainly applies in coal washer processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station etc.
