Introduction：
Mode explanation and performance chart
THM-2C
T:Tower
H:High concentraion
M:Metal lined
2:Discharge size (Inch)
C:Frame type with maximum power

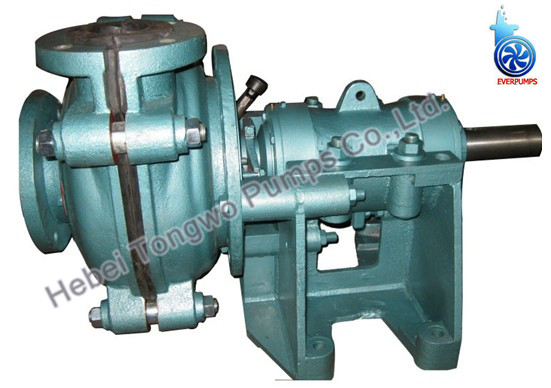

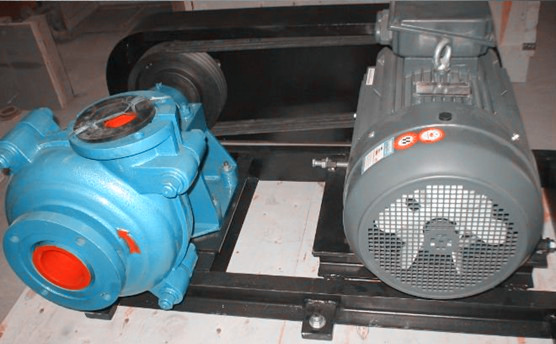

Introduction of Slurry Pump ----THM Series
THM Series slurry pump is mainly using for handing strong abrasive, high density slurries and low density, high head slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc.
The features of this kind of slurry pump
The frame plates of this kind of slurry pump have replaceable wear-resistant metal liners. The impellers are made of wear-resistant metal. The frame plate liner and impeller for THM pump are adoptable of hard metal only.
Working Part Structure Drawing
Bearing assembly of this kind of slurry pump use cylindrical structure, adjusting the space between impeller and front liner easily, being removed completely when being repaired. Bearing assembly use grease lubrication.
Main application of this kind of slurry pump
This kind of slurry pump mainly applies in coal washer processing, handling with the fine ore and tailings in metal mine, handing combined bottom and fly ash in a thermal power station etc.
|
Pump
Model |
THM Series |
Impeller
Dia. |
||||||
|
Allowable
Max.Power
|
Clear Water Performance |
|||||||
|
Capacity Q |
Head |
Speed |
Max.Eff. |
NPSH |
||||
|
m3/h |
l/s |
|||||||
|
THM-1B |
15 |
12.6-28.8 |
3.5-8 |
6-68 |
1200-3800 |
40 |
2-4 |
152 |
|
THM-1.5B |
15 |
32.4-72 |
9-20 |
6-58 |
1200-3200 |
45 |
3.5-8 |
184 |
|
THM-2C |
30 |
39.6-86.4 |
11-24 |
12-64 |
1300-2700 |
55 |
4-6 |
214 |
|
THM-3C |
30 |
86.4-198 |
24-55 |
9-52 |
1000-2200 |
71 |
4-6 |
245 |
|
THM-3D |
60 |
|||||||
|
THM-4D |
60 |
162-360 |
45-100 |
12-56 |
800-1550 |
65 |
5-8 |
365 |
|
THM-4E |
120 |
|||||||
|
THM-6E |
120 |
360-828 |
100-230 |
10-61 |
500-1140 |
72 |
2-9 |
510 |
|
THM-6R |
300 |
|||||||
|
THM-8ST |
560 |
612-1368 |
170-380 |
11-61 |
400-850 |
71 |
4-10 |
686 |
|
THM-10ST |
560 |
936-1980 |
260-550 |
7-68 |
300-800 |
82 |
6 |
762 |
|
THM-12ST |
560 |
1260-2772 |
350-770 |
13-63 |
300-600 |
77 |
3-10 |
965 |
|
THM-14TU |
1200 |
1368-3060 |
380-850 |
11-63 |
250-550 |
79 |
4-10 |
1067 |
