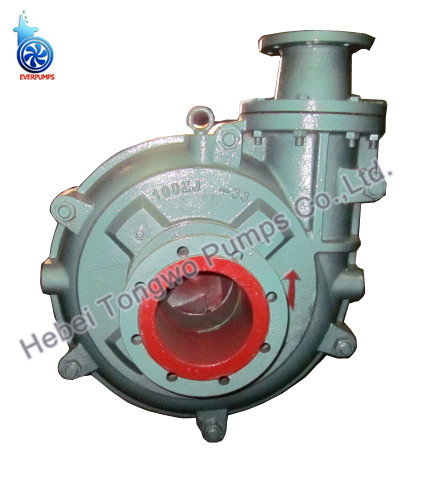

Product name 100TZJ-A36 slurry pump Type TZJ pump size 100-A36 Capacity 61-245 m3/h Head 9.7-49.5m Allowable Max. Power 55kw Speed 700-1480r/min NPSH 2m

---

Model Explanation：

100TZJ-A36

T: Our company

ZJ: Slurry pump

100: Discharge size (mm)

A: Impeller number A:5, B:4, C:3,F:6, G:7, H:8

36: Impeller Diameter



Introduction：

With the development of the technology, our company has introduced the series TZJ slurry

pump under the theory of modern fluid mechanics, based on the software design and practical experiences. The TZJ series slurry pumps are designed as single-stage, single-suction centrifugal pumps. They are classified into the horizontal type (TZJ type) and vertical type (TZJL type) according to construction. The pumps are innovative in both hydraulic and structural design.

The wet parts are made from high-chrome alloy with high wear-resistance. They are of energy- saving, high efficiency, little vibration, low noise, long service, lightweight, reliable operation and easy maintenance.



Application：

The TZJ series slurry pumps are widely used in power plant, metallurgical, mining, coal,

etc. which are suitable for handling abrasive and corrosive slurries with maximum concentrations of wt.45% (ash) and wt.60% (ore) such as the fine ore and tailings in mining, removing ash in power plant and delivering coal tailings. The pumps can be operated in series according to special requirements.

 TZJ(L) Pump Performance



Type	Alloeable Mating	CLEAR WATER PERFORMAACE					Particle	Pump weight
	POWER（Kw）						Max.size handled occasionally	(kg)
		Q Capacity（m3/h）	Head	Speed	Max.eff	NPSHr	(mm)
			(m)	(r/min)	η%	(m)
500TZJ-A140	1200	3750-7960	49-55	200-490	82	5-10	120	19100
450TZJ-A140	1200	3310-6610	52-57	200-490	85	5-10	120	18864
400TZJ-A125	1200	2520-5040	48-66	200-500	80	4.5-9	110	14432
350TZJ-F100	560	526-2339	14.9-62.8	300-590	77.8	4.4	96	5465
300TZJ-A100	450	464-1826	15.3-65.2	300-590	81.1	3	88	5265
300TZJ-A95	400	441-1735	13.8-58.8	300-590	78.1	3	88	5220
300TZJ-A90	560	505-1844	21.2-79.9	400-730	82.8	3.9	85	5005
300TZJ-A85	450	477-1742	18.9-71.3	400-730	79.8	3.8	85	4965
300TZJ-A70	630	635-2333	16.0-76.8	490-980	80.4	3.9	92	3560
300TZJ-A65	500	589-2166	13.8-66.2	490-980	77.4	3.7	92	3531
300TZJ-A56	250	395-1568	9.7-46.0	490-980	80.9	3.5	96	3030
250TZJ-A103	560	402-1573	29.7-110.5	400-730	74.5	2.8	69	5085
250TZJ-A96	560	403-1466	25.4-93.7	400-730	77.8	3.5	69	5035
250TZJ-A90	450	378-1374	22.3-82.4	400-730	73.8	3.4	69	4980
250TZJ-A85	800	376-1504	30.1-128.7	490-980	76.5	3.5	76	4530
250TZJ-A83	800	367-1469	28.7-122.7	490-980	75.5	3.5	76	4514
250TZJ-A80	710	354-1416	26.7-114.0	490-980	73.5	3.4	76	4490
250TZJ-A78	630	415-1796	21.1-102.5	490-980	71.5	3.2	76	4474
250TZJ-A75	560	300-1480	20.8-97.5	490-980	77.5	3	72	3480
250TZJ-A73	500	292-1441	19.7-92.4	490-980	76.5	3	72	3466
250TZJ-A70	450	280-1381	18.1-84.9	490-980	74.5	2.9	72	3446
250TZJ-A68	450	272-1342	17.1-80.1	490-980	73.5	2.7	72	3432
250TZJ-A65	315	299-1249	15.4-71.0	490-980	76.5	3	72	3020
250TZJ-A63	315	290-1211	14.4-66.7	490-980	75.9	3	72	3008
250TZJ-A60	280	276-1153	13.1-60.5	490-980	73.9	2.8	72	2991
200TZJ-A85	560	221-907	32.0-133.7	490-980	70.5	2.8	54	4110
200TZJ-A75	355	225-900	22.8-102.9	490-980	74.4	3	56	3070
200TZJ-A73	355	219-876	21.6-97.5	490-980	73.1	3	56	3056
200TZJ-A70	315	205-976	19.4-86.4	490-980	75.6	2.8	56	2465
200TZJ-A68	315	199-948	18.3-81.5	490-980	74.6	2.8	56	2453
200TZJ-A65	250	235-950	16.4-72	490-980	79.6	2.5	62	2323
200TZJ-A63	250	228-921	15.4-67.6	490-980	78.6	2.5	62	2311
200TZJ-A60	185	218-870	13.9-62	490-980	83.5	2.5	62	2223
200TZJ-A58	185	211-841	13-57.9	490-980	82.5	2.5	62	2214
150TZJ-A70	185	93-401	20-91.2	490-980	62.3	2	37	2245
150TZJ-A65	200	150-600	17.4-75.7	490-980	70.8	2.5	48	2223
150TZJ-A63	185	146-582	16.3-71.1	490-980	69.8	2.5	48	2211
150TZJ-A60	160	135-550	14.7-63.5	490-980	75.9	2.5	48	2203
150TZJ-A58	132	131-532	13.7-59.3	490-980	74.9	2.5	48	2033
150TZJ-C58	160	134-596	12.8-61	490-980	69.1	2	75	2063
150TZJ-A57	110	95-427	13.2-56.3	490-980	67.8	1.8	32	2023
150TZJ-A55	110	124-504	12.3-53.4	490-980	72.9	2.3	48	2019
150TZJ-A50	75	115-460	9.5-43.1	490-980	76.8	2.5	48	1735(1468)
150TZJ-A48	75	111-442	8.7-39.7	490-980	75.8	2.5	48	1728(1641)
150TZJ-C42	132	142-550	12.1-62.8	700-1480	77.1	2.2	69	1605(1518)
100TZJ-A50	160	85-360	20.5-100.2	700-1480	69.6	2.5	34	1475(1388)
100TZJ-A46	132	79-331	17.3-84.8	700-1480	67.6	2.3	34	1461(1374)
100TZJ-A42	90	66-275	14.7-70.8	700-1480	71	2.5	35	1075(1021)
100TZJ-B42	90	83-365	12.7-66.8	700-1480	71.6	2.5	40	1085(1031)
100TZJ-A39	75	61-255	12.6-61	700-1480	69	2.4	35	1064(1010)
100TZJ-A36	55	61-245	9.7-49.5	700-1480	71.6	2	32	1010(956)
100TZJ-A33	45	56-225	8.2-41.6	700-1480	69.6	1.8	32	1003(949)
80TZJ-A52	160	51-242	22.1-109.8	700-1480	56.3	2.1	21	1465(1378)
80TZJ-A42	75	61-204	14.4-70.4	700-1480	66.7	2.5	24	1053(963)
80TZJ-A39	55	57-189	12.4-60.7	700-1480	64.7	2.4	24	1042(952)
80TZJ-A36	45	46-190	9.6-51.4	700-1480	67.7	2.5	24	980
80TZJ-A33	37	43-174	8-43.2	700-1480	65.7	2.3	24	973(919)
65TZJ-A30	15	23-79	7.4-34.8	700-1480	63.5	2	19	504(512)
65TZJ-A27	11	20-71	6-28.2	700-1480	61.5	1.8	19	500(508)
50TZJ-A50	90	27-111	22.3-110.7	700-1480	45.1	3	13	1378
50TZJ-A46	55	23-94	17.9-85.8	700-1480	44.7	1.4	14	1082(992)
50TZJ-A33	18.5	12-54	7.7-42.5	700-1480	42.1	2.9	13	537(545)
40TZJ-A19	15	8-35	12.8-57.1	1430-2930	58.8	1.3	11	173
40TZJ-A17	7.5	4月23日	9-44.6	700-1480	52.4	2.5	11	121(127)
150TZJL-50	55	121-350	12.3-24	590-730	75	/	20	1200
150TZJL-35	37	99-364	3.0-17.9	490-980	69	/	15	800
100TZJL-34	45	74-293	5.5-36.8	700-1480	65.1	/	14	630
80TZJL-36	45	50-201	7.3-45.5	700-1480	58.2	/	12	650
65TZJL-30	18.5	18-98	5.9-34.7	700-1470	53.7	/	8	440
50TZJL-20	4	8-38	1.4-10.7	700-1440	38.6	/	10	24
40TZJL-B25	4	4.9-22.9	4.0-21.5	700-1440	37.6	/	8	225
40TZJL-A21	4	4.6-25.9	3.3-17	700-1440	44.6	/	10	210

Note ：1. (NPSH) refers to the value at the specified point at the second speed in the sample book.

       2.The normal size of particle handed is 56% of the max. size that can be handled occasionally.

       3.There are two weight datas on common bases.They are the weight dastas of the high speed Pumps without brackets, the slow speed pumps in brackets.



---
